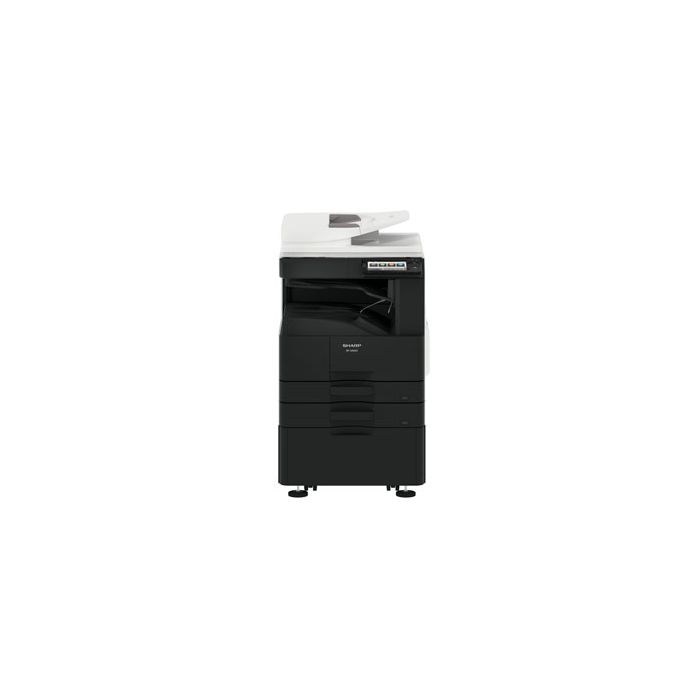

BP-30M28 Sharp Photocopier
Have a Question about this product?
TheBP-30M28 Sharp Photocopiers and Multifunction Printer gives your enterprise the advanced document capabilities you need to succeed. Work seamlessly whether you're in your office, at home, or in a remote location. Cloud and mobile connectivity let you keep on top of changes in bunsiness.
Get your document jobs done smoothly and efficiently with an MFP that packs a full suite of business features that get the most out of your data. We've designed this MMFP to be accessible and easy to use for anyone on your team. it wakes up fast and handles a wide range of tasks. A range of powerful security features keep your confidential business informatioon safe, whether it is n a document, on the MFP, or on your network.
Easy User Interface
In Easy UI mode, the touchscreen displays simple icons for frequently used functions like duplexing and paper size seletion.
Fast Wake Up
Placing a document in the RSPF or touching the LCD control panel wakes the MFP up from Sleep mode in just one second.
Office Direct Printing
Even without a PC, you can print common Mocrosoft Office files directly from a mobile device, cloud service, USB drive, or file server. Requires optional MX-PU10.
Wireless Connectivity
With the optional MX-EB18, the BP-30M28 offers ultra-handy wireless access, enabling convenient access to the MFP even from places where it’s difficult to connect a LAN cable.
OCR Function
OCR capability on this MFP lets you convert a scanned docyment into a searchable PDF file or editable Office Open XML file.
Link with Mail Servers
Scanned data can be conveniently sent via your regular Gmail™ or Microsoft Exchange/Online account.
Data Encryption and Erasure
Job data is encrypted before being saved to the MFP's internal storage. Once the data is output or sent, it is automtically erased.
Whitelisting
Whitelisting protexts the MFP from fraudulent programs trying to access the file system and obtain information.
DDS Filters
| Print Speed | 30ppm |
General Info
| Print Type | Mono |
| User Interface | 7” Colour WSVGA (1024x600 dots) |
| Product Environment | Medium Office/Workgroup |
| Original Paper Size | Max. A3 |
| Printed Paper Size | Tray: A3-A5R, Bypass: A3-A6R Banner Paper: Width: 90 to 305mm x Length: 458 to 1,300mm from Bypass only. |
| Standard Paper Capacity | 1,100 (500-sheets x 2 + 100-sheet Multi bypass) |
| Maximum Paper Capacity | 2,100 (500-sheets x 2 + 100-sheet Multi bypass) + (500-sheets x 2) |
| Paper Weight | Tray1: 60-105gsm, Tray2-4: 60-200gsm, Bypass Tray: 55-200gsm |
| Output Capacity | 500-sheet centre tray |
| Warm-up Time | 19sec or less (Power Button), 29sec or less (via Main Switch) |
| Resolution (Equivalent) | 1,200 x 600dpi, 600 x 60dpi |
| Memory | 4 GB (STD & Max) |
| HDD Capacity | 128GB SSD, Opt: BP-SD10 512GB SSD |
| Duplex | STD (60-105gsm) |
| Dimension (W x D x H) | 620 x 614 x 830 mm |
| Weight (kg) | 49.000000 |
| Sharp OSA | 5.5, Opt: MX-AMX2 or MX-AMX3 required |
Copier
| Copy Speed | 26 ppm (A4), 15 ppm (A3) |
| E-Sort / SOPM | Yes / Yes |
| First Copy Time (OC) | 4.3 / 7.0 sec |
| Continuous Copy | Max. 9,999 copies |
| Scan Resolution | 600 x 400 dpi / 600 x 600 dpi |
| Zoom Range | 25 - 400% (SPF 25 - 200%) |
Environmental
| Power Supply/Consumption | Max. 1.45kW |
| TEC Value (Measured) | 1.4 kW |
| Noise | Standby 6.5dB, Operating 56.0db Measurement with BP-FN10 & BP-DE11 |
Document Feeder
| Document Feeder | RSPF [STD] |
| Original Capacity | Max 100 sheets (80 gsm) |
| First Copy Time | 4.3 / 7.0 sec |
| Scan Speed | (1 sided): 60 opm (B/W & Colour); (2 sided): 23 opm (B/W & Colour) |
Filing
| Quick/Main Folder | Quick Folder: Max: 5,000 pages or 500 files (STD), Main/Custom: Max. 5,000 pages or 500 files (STD); Quick Folder: Max: 10,000 pages or 1,000 files with BP-SD10 Main/Custom: Max. 20,000 pages or 3,000 files with BP-SD10 |
| Preview Thumbnails | Supported |
Printer Spec
| Print Speed (Max) | 31/28 ppm (A4), 17 ppm (A3) |
| PDL (Emulation) | STD: PCL6, Opt: Adobe® PostScript®3 [MX-PK13] |
| Interface | USB2.0, 10Base-T / 100Base-TX / 1,000BaseT |
| Protocol | TCP/IP (IPv4, IPv6), |
| Supported OS | Windows®8.1*, Windows®10*, Windows®11, Windows® Server 2012 / 2012R2 / 2016 / 2019 (*32/64bit). Mac OS® 10.9 to 10.15, 11 & 12 with Adobe® PostScript®3 [MX-PK13]. |
| Utility Software (Download) | Printer Status |
Network Scanner
| Resolution | 100, 150, 200, 300, 400, 600 dpi; Network Twain: Custom 50-9600 dpi |
| Format | TIFF, XPS, JPEG*, PDF, Encrypted PDF; Opt: Compact PDF* with MX-EB19; Opt: Office Format (docx, xlsx, pptx), PDF/A-1a, PDF/A-1b, Searchable PDF, TXT, RTF & UTF-8 with MX-EB20. (*colour/greyscale only) |
| Destination | Desktop (NST-Lite), FTP, E-Mail, SMB Folder, USB, HDD, TWAIN / WIA compliant. I-Fax (SMTP) with MX-FWX1 |
| User Registration | Max 2,000 (one touch), 500 addresses (one group key) |
| Utility Software (Download) | NST Lite |
Facsimile
| Model | BP-30M28 |
| Communication Protocol | Super G3/G3 |
| Transmission Speed | Less than 3 seconds*18 |
| Compression | MH/MR/MMR/JBIG |
