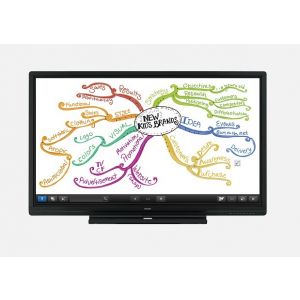

Sharp 70" Interactive Whiteboard Monitor : PN-70SC3
Whether you’re in a classroom or a meeting room, it can sometimes be a challenge to keep everyone focused and engaged. That’s where Sharp’s PN-70SC3 Interactive whiteboard comes in.
This large full-HD 70-inch touchscreen monitor lets you display and manipulate a variety of information with ease and precision. Smart and convenient pen software opens up new possibilities
for brainstorming and sharing information in real time. Flexible and cost-effective, the PN-70SC3 provides a platform to boost collaboration and enhance the impact of your lessons, meetings, or presentations.
LCD Panel
| Screen | 70-inch widescreen (176.6 cm diagonal) UV2A LCD |
| Max. Resolution | 1,920 x 1,080 pixels |
| Max. Display Colours (approx.) | 16.7 million colours |
| Pixel Pitch (H/V) | 0.802 x 0.802 mm |
| Max. Brightness (average) | 300 cd/m2 |
| Contrast Ratio | 3,000 : 1 |
| Viewing Angle (H/V) | 160º / 160º (CR > 10) |
| Active Screen Area (W x H) (approx.) | 1,538.9 x 865.6 mm |
| Response Time | 6 ms (gray to gray, avg.) |
| Backlight | LED, edge lit |
Installation
| Installation | Landscape |
Touch Pen
| Communication | Not supported |
| Function Button | - |
Video Colour System
| Standard | NTSC (3.58 Mhz, 4.43 Mhz), PAL , PAL60, SECAM |
| Options | - |
Input Terminal
| Display Port™ | - |
| HDMI™ | 3 |
| DVI-I | - |
| DVI-D | - |
| Component Video | 1 |
| PC Analogue mini D-sub 15 pin | 1 |
| RS-232C | In |
| USB | - |
| Video BNC | - |
| Component BNC | - |
| RCA pin (L/R) | 2 |
| Audio (3.5mm stereo mini jack) | 1 |
| With Options | - |
Output Terminal
| DisplayPort™ | - |
| DVI-D | - |
| RCA pin(L/R) | 1 |
| 3.5mm mini stereo jack | - |
| Digital Audio Output (Optical) | - |
| Micro-USB | - |
| Options | - |
Speakers
| Built-in | 10 W + 10 W External |
| External | - |
Other
| Mounting | VESA (4 points), 400 x 400 mm pitch, M6 screw |
| Power Supply | 100V - 240V AC, 50/60 Hz |
| Power Consumption | 235 W |
| Display (WxDxH) | 1,633 x 109 x 994.5 mm |
| Weight | 56 Kg |
Environmental
| Operating Temperature | 5ºC to 35ºC |
| Operating Humidity | 20% to 80% RH (No condensation) |
Accessories
| Main Accessories | AC power cord, remote control unit, batteries, SHARP Pen Software CD-ROM, set-up manual, cable clamps x 2, USB cable, eraser, pen tray, touch pen, blank sticker |
| Options | PFW5505 |
