PN70HC1E 70" 4k SoC Interactive Whiteboard
Have a Question about this product?
Have a Question about this product?
Running an impactful and interactive teaching or training session doesn’t have to be a technological challenge.
A Better Way to Educate

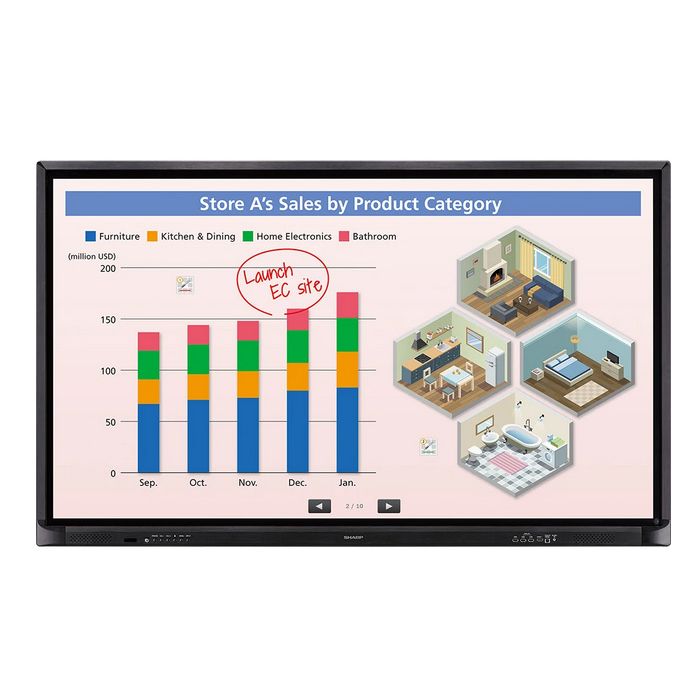

The Sharp PN70HC1E, BIG PAD smart interactive display enables ultra clear ‘4K Reading’ of detailed data and makes presenting really easy with an intuitive Pen-on-Paper user experience. It also has the tools you need for effortless productivity, such as an integrated System on Chip (SoC) controlled with launcher, whiteboard, overlay and wireless functionality.
Fast, intuitive controls
Everything you need to adjust and optimise the performance of the Sharp PN-70HC1E BIG PAD is in easy reach with its bezel-mounted button controls, allowing you to quickly adjust input source, volume and power.Front terminals
These make it easy to access teaching materials or other content stored on sources connected via HDMI™ and USB. Such easy-to-use controls are vital to the effective running of a class, as teachers and trainers are not distracted by the technology, so they can focus on delivering the content and the needs of their students. The BIG PAD’s role as a learning aid is unmistakable, making a fantastic contribution to all working environments.See more clearly
Featuring a true 3840 x 2160 Ultra High Definition (UHD) 4K resolution display and touchscreen. The high contrast and visual clarity of its LCD technology is optimised for 4K reading and presentation, so you can see even the finest details with great clarity.
LCD Panel
| Screen | 70-inch 4K LCD |
| Max. Resolution | 3,840 x 2,160 pixels |
| Max. Display Colours (approx.) | 1.07 billion colours (approx) |
| Pixel Pitch (H/V) | 0.40075 x 0.40075 millimetre |
| Max. Brightness (average) | 350 cd/m2 |
| Contrast Ratio | 4,000 : 1 |
| Viewing Angle (H/V) | 176°/ 176° (CR > 10) |
| Active Screen Area (W x H) (approx.) | 1,539 x 866 millimetre |
| Response Time | 8 ms (grey to grey, avg) |
| Backlight | Direct Lit LED |
Installation
| Installation | Landscape |
Touchscreen
| Touch Technology | IR, Infrared blocking detection method |
| Multi Touch | 10 Points |
| PC Connection Port | USB 2.0 x 2 (Front x 1, Rear x 1) |
| Power Supply | Supplied from main unit |
| Driver | OS: Windows® 8.1, 10. Mac OS X V 10.13 - V10.14 (Intel processor) |
| Protection Glass | Thickness: Approx 4.0 mm, Shock resistance: 130 cm*3 |
Touch Pen
| Communication | Passive stylus included |
Computer Input
| Video (Computer Input) | Analogue RGB (0.7 Vp-p) [75 Ω], HDMI™ |
| Synchronisation | Horizontal/vertical separation (TTL: positive/negative) |
| Plug & Play | VESA DDC2B |
Video Colour System
| Standard | NTSC (3.58 MHz)/NTSC (4.43 MHz)/PAL/PAL60 /SECAM |
Input Terminal
| HDMI™ | 3 |
| Component Video | 1 |
| PC Analogue mini D-sub 15 pin | 2 |
| RS-232C | 1 |
| RCA pin (L/R) | 2 |
| Audio (3.5mm stereo mini jack) | 1 |
Output Terminal
| 3.5mm mini stereo jack | 1 |
Speakers
| Built-in | 10W + 10W |
Other
| Mounting | VESA (4 points), 600 x 400 mm pitch, M6 screw |
| Power Supply | 100V - 240V AC, 50/60 Hz |
| Power Consumption | 400 watts |
| Display (WxDxH) | 1629 x 99 x 990 millimetre |
| Weight | 54 KG |
Environmental
| Operating Temperature | 5°C to 35°C |
| Operating Humidity | 20% to 80% (no condensation) |
Accessories
| Main Accessories | AC power cord, remote control unit, remote control unit battery (AAA size) x 2, set-up manual, blank sticker, cable clamp x 3, USB cable, pen tray, SHARP Pen soware (CD-ROM), touch pen x 2, wireless adapter |
