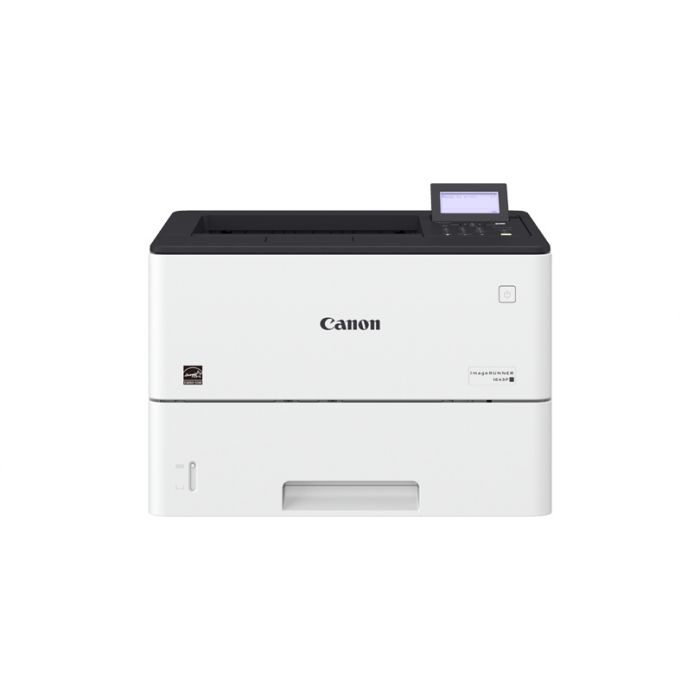

Canon imageRUNNER 1643P

Have a Question about this product?
Have a Question about this product?

*min 50, max 2000 characters

Small businesses and corporate workgroups depend on solutions that help maximise resources, boost productivity, and are easy to manage. The cost-efficient imageRUNNER 1643iF can do all that, and more. With fast output, scanning, faxing, and high reliability, this multifunction device helps you accomplish a lot in a small space.

Cost Control

Designed with your bottom line in mind, the Canon imageRUNNER 1643P helps minimise costs and maximise reliability while the robust design helps ensure dependable operation. Canon’s uniFLOW® software can help control costs by managing, tracking and charging back usage. And simple-to-replace, high-yield consumables help keep work moving while achieving a low cost per page.


Safeguard information and help ensure security compliance with the imageRUNNER 1643P. Canon’s uniFLOW® solution lets users securely retrieve documents from any networked device after authentication. These models also include technology to verify that the device boot process, firmware and applications initialise without tampering.


A compact single-function printer supporting up to legal-size paper, the imageRUNNER 1643P features a smart, comfortable design that can easily fit on a desktop or in a centralised area. With a first print-out time as fast as 5.7 seconds and output up to 43 ppm, the imageRUNNER 1643P is a quick performer. The standard 650-sheet capacity can be increased to 2,300 sheets to handle many jobs without interruption.

General Info

Print TypeMono Laser
User Interface5-line LCD Display + Numeric Keys
Product EnvironmentSmall to Medium Business
Printed Paper SizeA4
Standard Paper Capacity550-sheet cassette. 100-sheet multi-purpose tray
Maximum Paper Capacity2,300
Paper WeightStandard Cassette, Optional Paper Feeder: 52 to 120 gsm Multi-Purpose Tray: 52 to 199 gsm
Output Capacity250
Warm-up Time30 sec or less
Resolution (Equivalent)600 × 600 dpi Print Quality with Image Refinement Technology Up to 2400 × (equivalent) × 600 dpi
Dimension (W x D x H)409 mm x 376 mm x 275 mm
Weight (kg)11.500000


Zoom Range400%


Power Supply/ConsumptionMaximum: Approx. 1420 W or less Standby: Approx. 13.6 W Sleep mode: Approx. 0.7 W Typical Electricity Consumption (TEC): 1.4 kWh/week (230 V)
NoiseSound Pressure: Active: 54 dB; Standby: 24 dB Sound Power: Active: 72.9 dB; Standby: Inaudible

Document Feeder

Document FeederColour Contact Image Sensor
Original Capacity50 sheet
First Copy TimeADF (A4): Approx. 6.4 sec or less; Platen (A4): Approx. 6.3 sec or less
Scan SpeedSingle sided mono: 38 ipm (300 × 600 dpi) Single sided colour: 13 ipm (300 × 600 dpi) Double sided mono: 70 ipm (300 × 600 dpi) Double sided colour: 26 ipm (300 × 600 dpi)

Printer Spec

Print Speed (Max)43ppm
PDL (Emulation)UFR II, PCL6, PostScript 3, PDF, XPS
Interface5-line LCD Display + Numeric Keys
ProtocolWired: High-Speed USB 2.0, USB Host, 10Base-T/100Base- TX/1000Base-T Ethernet
Supported OSMicrosoft® Windows® 10 (32, 64-bit), Windows® 8.1 (32, 64-bit), Windows® 8 (32, 64-bit), Windows® 7 (32, 64-bit), Windows® Server 2012 R2 (64-bit), Windows® Server 2012 (64-bit), Windows® Server 2008 R2 (64-bit), Windows® Server 2008 (32, 64-bit), Windows® Server 2003 (32, 64-bit), Windows® Server 2016 (64-bit), Mac OS X 10.6.~ or later, Linux

Network Scanner

ResolutionLaser Resolution: Up to 600 × 600 dpi Smoothing Resolution: 1200 × 1200 dpi
FormatJPEG, TIFF, PDF, Compact PDF, PDF (OCR)


Transmission SpeedUp to 33.6 Kbps
CompressionMH, MR, MMR, JBIG
